Specifications
Raw Material
MS (HR, CRC), PRE-GALVANIZED, ALUMINIUM, STAINLESS STEEL
304 & 316.
Finish of Product
HOT-DIP GALVANIZED, GI ALKALINE, PRE-GALVANIZED, STAINLESS
STEEL 304 & 316, POWDER COATED, ALUMINIUM ANODIZED.
Flange Type
INSIDE EDGE
Features
Strength & Durability
Ease of Installation
Aesthetic Appeal
High Capacity
Rigid Structure
Maximum Cable Protection

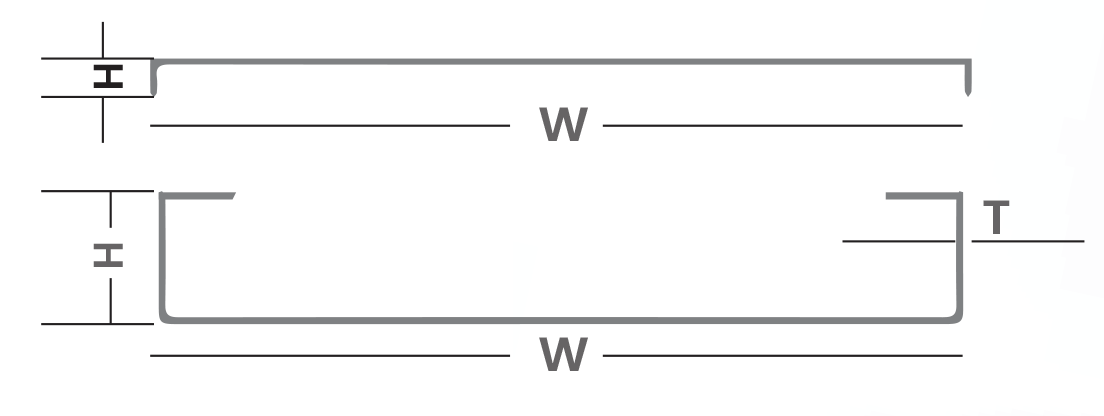

Technical Drawing
Product Range
WITH COMPARTMENT OR SINGLE COMPARTMENT
| Width | Height | Thickness | Length |
|---|---|---|---|
| 50 | 25 / 35 / 38 / 50 | 1.2 / 1.6 / 2.0 | 2500 / 3000 |
| 75 | |||
| 100 | 25 / 35 / 50 / 75 / 100 | ||
| 150 | |||
| 200 | |||
| 300 | |||
| 400 | |||
| 450 | 25 / 35 / 38 / 50 / 75 / 100 / 150 | 1.6 / 2.0 / 2.5 / 3.0 | |
| 500 | |||
| 600 |
*All dimensions are in MM
* All sizes are standard, but custom sizes can be
manufactured
