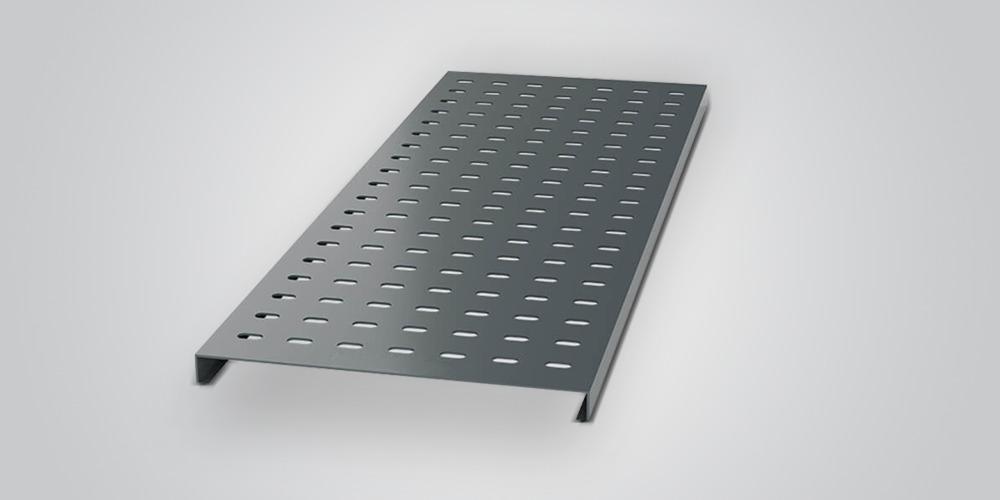

Solar Rooftop Walkway – Specifications
Raw Material
MS (CRC), PRE-GALVANIZED, STAINLESS STEEL 304 & 316.
Finish of Product
HOT-DIP GALVANIZED, PRE-GALVANIZED, POWDER COATED,
STAINLESS STEEL 304 & 316.
Features
Corrosion Resistance
Low Maintenance
Strength & Durability
Ease of Installation
Cost-Effective
Future-Proofing
Product Range – Solar Rooftop Walkway
| Width | Height | Thickness | Length |
|---|---|---|---|
| 300 | 25 / 35 / 50 | 1.6 / 2.0 / 2.5 / 3.0 | 2500 |
| 400 | |||
| 450 | |||
| 500 | |||
| 600 |
*All dimensions are in MM
* All sizes are standard, but custom sizes can be
manufactured
Strut Channels – Specifications
Material
MS (HR/TRC), PRE-GALVANIZED, STAINLESS STEEL 304, 316.
Also other materials on request.
Finish Available
ELECTRO-GALVANIZED, HOT DIP GALVANIZED, PRE-GALVANIZED,
POWDER COATING
Size Range
41 X 21 MM, 41 X 41 MM
Thickness
1.6MM, 2.0MM, 2.5MM
Length
3 MTR (STD), any other specific size upon request with
short lead times
Slot Size
14X28MM, 12X25MM
Strut Channels Image
